3.2 Bind base and deps in source

Overview

Commit the dest Hummingbird FROM from 1.2 and the default Maven pin 3.14.0.rhlw-00001 on your Gitea app lw-student/spring-boot-lw-poc.

The seeded Dockerfile still uses UBI OpenJDK 21. lightwell-pins.properties is stale on purpose for 3.3. Do not edit that pins file here. Do not copy a sample FROM from Showroom.

Why it matters

TSSC is only as strong as the pins in source. You pin digests in git, not :latest. A UBI FROM or an unused Maven profile rebuilds the untrusted seed. Later hermetic build, SBOM, and VEX all read these files.

Lightwell Clearinghouse Premier member-specific versions would replace the default GAV the same way. They still sit next to the dest Hummingbird FROM.

What does it solve

  • Dockerfiles and Maven pins that still float

  • UBI FROM on a public registry

  • Unused profiles hiding the pin

Why seed is UBI

The template starts on UBI so you must bind the internal digest you mirrored. If the template already used Hummingbird, Track 3 would be a screenshot. The same trust boundary as 1.2 applies here.

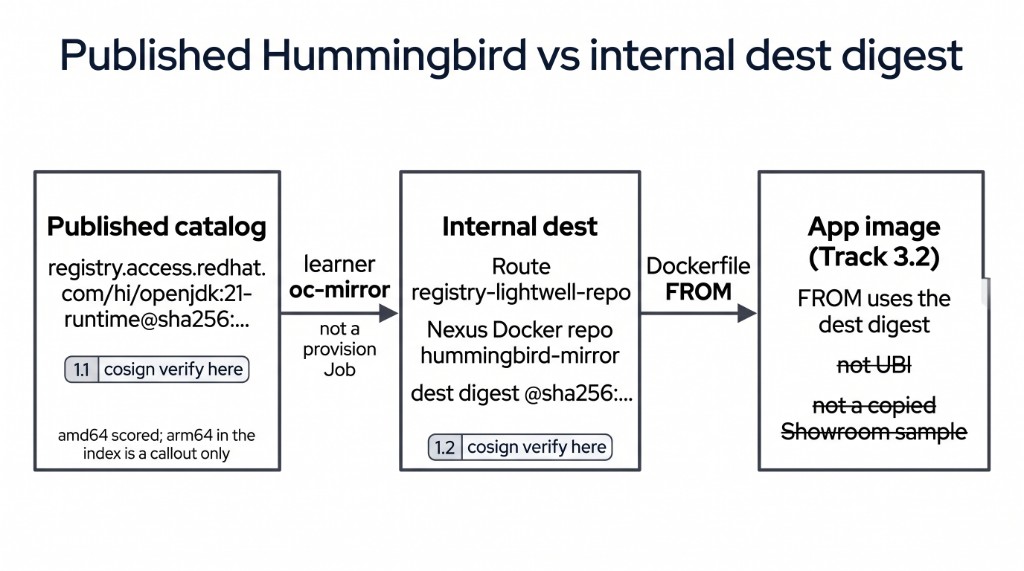

Published Hummingbird versus dest digest used in Dockerfile FROM

Clone your app remote

export STUDENT_USER=student
: "${STUDENT_PASS:=$(oc -n gitea get configmap demo-userinfo-gitea -o jsonpath='{.data.student_password}')}"
: "${REPO_URL:=$(oc -n gitea get configmap demo-userinfo-gitea -o jsonpath='{.data.student_repo_url}')}"
rm -rf /tmp/spring-boot-lw-poc
git clone "${REPO_URL}" /tmp/spring-boot-lw-poc
cd /tmp/spring-boot-lw-poc
git remote -v
grep -n FROM Dockerfile
grep commons.lang3.version pom.xml | head -20
cat lightwell-pins.properties

Expect runtime FROM ubi9/openjdk-21-runtime and a default commons.lang3.version of 3.14.0 (affected upstream). 3.18.0 (or any newer Central line) is the wrong fix. The pin is not yet 3.14.0.rhlw-00001. Pins file should still show 3.14.0.rhlw-00000 and an all-zero Hummingbird digest.

Dest host (runtime FROM registry). dest_registry_repo is the Nexus Docker repository name (hummingbird-mirror), not the image path. Dest image path is hi/openjdk. Prefer the DEST_PULLSPEC= line from the 1.2 copy-signatures Job log.
oc -n lightwell-repo get configmap demo-userinfo-lightwell-repo \
  -o jsonpath='dest={.data.dest_registry_host}{"\n"}internal={.data.dest_registry_internal_host}{"\n"}'
echo 'Dest image path is hi/openjdk — not dest_registry_repo (hummingbird-mirror).'
echo '3.2 uses dest_registry_host (Route). 4.1 retargets runtime FROM to an internal ImageStream so 4.4 still works after 4.3.'
oc -n lightwell-repo logs job/oc-mirror-learner -c copy-signatures | grep '^DEST_PULLSPEC=' || true

Worked example (not the Check)

# Worked example ONLY — fake registry. Pasting this as FROM still fails.
FROM registry.example.invalid/not-hummingbird:latest

Your change: runtime FROM + default pin

  1. Change only the runtime stage FROM (leave the AS build UBI line). Use dest host + path hi/openjdk + the internal digest from 1.2 (or paste DEST_PULLSPEC). Do not put dest_registry_repo (hummingbird-mirror) in the image path. Do not reuse the published registry.access.redhat.com pin from 1.1, and not :latest.

  2. Change the default <commons.lang3.version> in pom.xml to the Track 2 pin (3.14.0.rhlw-00001). Do not stop at a profile that is never activated. You already practiced this on ConfigMap stub-04-remediated-pin; this commit is the scored git copy.

  3. Do not edit lightwell-pins.properties.

If git commit reports unknown author identity, or git push cannot read a username (Showroom has no TTY for HTTPS auth)
cd /tmp/spring-boot-lw-poc
git config user.name student
git config user.email student@workshop.local
: "${STUDENT_USER:=$(oc -n gitea get configmap demo-userinfo-gitea -o jsonpath='{.data.student_username}')}"
: "${STUDENT_PASS:=$(oc -n gitea get configmap demo-userinfo-gitea -o jsonpath='{.data.student_password}')}"
hostpath="$(git remote get-url origin)"
hostpath="${hostpath#https://}"
hostpath="${hostpath#http://}"
git remote set-url origin "https://${STUDENT_USER}:${STUDENT_PASS}@${hostpath}"

A later Showroom restart stores the same author and Gitea credentials in ~/.gitconfig so later modules can keep git commit / git push origin HEAD as written.

cd /tmp/spring-boot-lw-poc
git add Dockerfile pom.xml
git status
git diff --cached
git commit -m "Bind dest Hummingbird runtime and Lightwell default pin"
git push origin HEAD

Check: committed files on your remote

cd /tmp/spring-boot-lw-poc
git fetch
git show HEAD:Dockerfile | grep -E '^FROM '
git show HEAD:pom.xml | grep -A1 commons.lang3.version | head -20
git show HEAD:lightwell-pins.properties

Pass when:

  • Runtime FROM is dest registry + hi/openjdk + digest (not hummingbird-mirror, not ubi9/openjdk-21-runtime, not the worked-example host)

  • Default pom property is 3.14.0.rhlw-00001

  • lightwell-pins.properties is still stale (bot work)

Fill the report

The Job also grades ConfigMap report-06-bind-base-deps key runtime_from. Set it to dest-digest. Empty or REPLACE_ME fails even if cluster state is correct. Do not copy validate-docs.

oc -n lw-poc-validate edit configmap report-06-bind-base-deps

The scored Check is Job validate-06-bind-base-deps in lw-poc-validate. Direct nav URLs still work (honor system). Unlimited retries. There is no Solve.

Run the Validate Job
oc -n lw-poc-validate delete job validate-06-bind-base-deps --ignore-not-found
TPL='job-06.yaml'
oc -n lw-poc-validate get configmap validate-job-templates \
  -o go-template="{{ index .data \"${TPL}\" }}" | oc create -f -
oc -n lw-poc-validate logs -f job/validate-06-bind-base-deps

Expect CHECK PASSED: before you continue. CHECK FAILED: names the object to fix. Delete the Job and create it again as often as you need.

Honor system: 3.3 still opens. Still-UBI runtime FROM fails this Check.

Callout: Python runtime FROM

A Python app binds the same way. Runtime FROM is the dest Hummingbird Python digest (not ubi9/python-* on a public registry). The pin still comes from 1.2. This Check is the Java OpenJDK Dockerfile.

Official documentation

Key takeaways

  • TSSC source of truth is your Gitea remotes. Dest Hummingbird plus the Lightwell Network pin live there.

  • Clearinghouse Premier would change the same default property, not a side file.

  • 3.3 still requires a bot PR on the pins file.

cd ~/ocp5-rhacs-showroom
bash setup/lab-cleanup.sh --module tssc-06
