4.1 Source forbid-list

Overview

Hermetic starts in source. Strip public FROM, curl, and Maven Central from active files. Import a builder ImageStream. Retarget FROM. Keep Dockerfile.known-bad.

3.2 already pointed the runtime stage at dest Hummingbird. The build stage is still UBI on a public registry. 4.3 will deny that pull. While egress is still open, import a JDK builder into the internal registry and retarget the build FROM.

This is not the prefetch Check (4.2) and not the NetworkPolicy Check (4.3).

Why it matters

A Central remote bypasses the proxy the moment prefetch or NetworkPolicy is skipped. Lightwell Network GAVs and dest Hummingbird only enter the image if active Dockerfile and settings.xml have no public fallback. Keep Dockerfile.known-bad as the negative fixture 4.4 still uses.

Clearinghouse Premier does not add a public index. Member-specific GAVs must resolve from the same in-cluster Nexus service URL you point Maven at here.

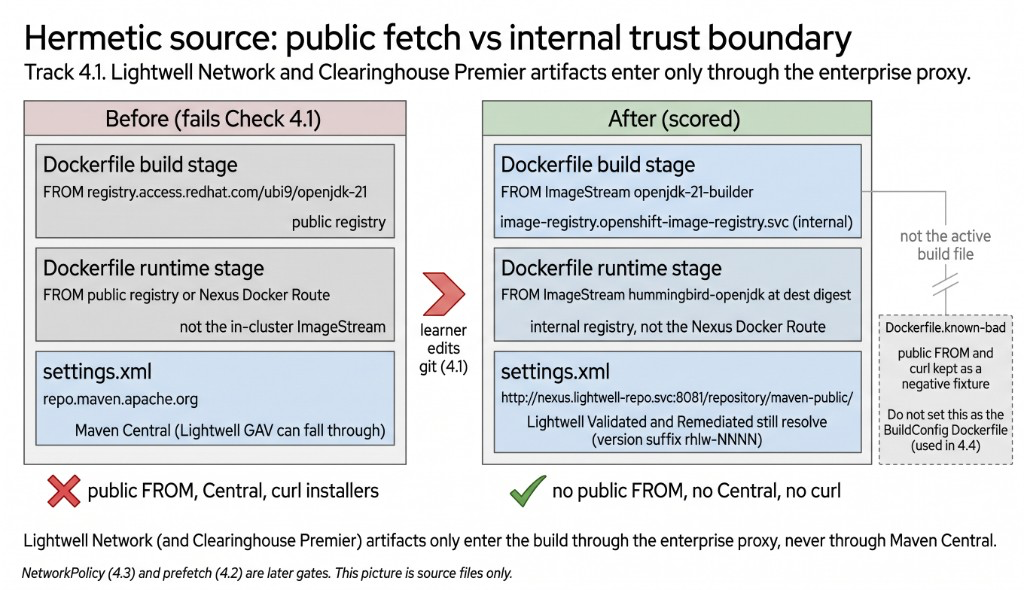

Public FROM and Maven Central versus internal ImageStreams and Nexus so Lightwell GAVs stay inside the trust boundary

What does it solve

  • Public FROM, Maven Central, or curl still in active files

  • Runtime FROM still on the Nexus Route that 4.3 will block

Seeded violations

Clone your app if needed (student_repo_url). Inspect:

cd /tmp/spring-boot-lw-poc
grep -nE 'FROM |curl |repo.maven.apache.org|registry.access.redhat.com|registry.redhat.io' Dockerfile settings.xml pom.xml || true

Expect at least: build-stage FROM UBI on registry.access.redhat.com, and repo.maven.apache.org in settings.xml.

Worked example (not the Check)

# Worked example ONLY — different public host. Do not use as the active Dockerfile.
FROM docker.io/library/eclipse-temurin:21-jdk
RUN curl -fsSL https://example.invalid/install.sh | sh

Your change: strip forbidden fetches; both FROM lines internal

  1. While build-egress is still too open, import a JDK builder into lw-poc-build (do not invent a Hummingbird builder digest — use the UBI JDK stream already on the seed, copied into the internal registry). Import dest Hummingbird the same way — 3.2’s runtime FROM is the Nexus Docker Route, which 4.3 blocks:

BUILD_NS="$(oc -n gitea get configmap demo-userinfo-gitea -o jsonpath='{.data.student_build_namespace}')"
oc -n "${BUILD_NS}" import-image openjdk-21-builder \
  --from=registry.access.redhat.com/ubi9/openjdk-21:1.21 \
  --confirm
DEST="$(oc -n lightwell-repo logs job/oc-mirror-learner -c copy-signatures | grep '^DEST_PULLSPEC=' | cut -d= -f2-)"
echo "DEST=${DEST}"
oc -n "${BUILD_NS}" import-image hummingbird-openjdk \
  --from="${DEST}" --confirm --insecure=true
oc -n "${BUILD_NS}" get istag hummingbird-openjdk:latest \
  -o jsonpath='{.image.dockerImageReference}{"\n"}'

  1. Point the Dockerfile build FROM at ImageStream openjdk-21-builder (internal registry). Point runtime FROM at ImageStream hummingbird-openjdk using the dest digest from 1.2 / 3.2 (image-registry.openshift-image-registry.svc:5000/${BUILD_NS}/hummingbird-openjdk@sha256:…). Do not leave dest_registry_host (the Nexus Docker Route) on an active FROM line. No registry.access.redhat.com on active FROM lines.

  2. In settings.xml, remove repo.maven.apache.org from the Lightwell profiles. Point remotes at the in-cluster Nexus service (nexus_internal_url from userinfo — http://nexus.lightwell-repo.svc:8081), not the HTTPS Route. Add a <mirror> with mirrorOf (or external:) whose URL is ${nexus_internal_url}/repository/maven-public/. Seeded maven-public includes Validated + Remediated so .rhlw-* pins resolve. 4.3 will block the Nexus Route from lw-poc-build; the service URL keeps working.

  3. If Dockerfile.known-bad is missing from your clone, copy it from the seed (public FROM / curl). The template repo already includes it. Do not set it as the BuildConfig Dockerfile. 4.4 still uses that file as a negative.

cd /tmp/spring-boot-lw-poc
git add Dockerfile settings.xml Dockerfile.known-bad
git commit -m "Forbid-list: internal FROM and Nexus-only Maven remotes"
git push origin HEAD

Check: scan of active files

cd /tmp/spring-boot-lw-poc
git show HEAD:Dockerfile | grep -E '^FROM '
git show HEAD:settings.xml | grep -E 'repo.maven.apache.org|lightwell-repo' || true
test -f Dockerfile.known-bad && echo 'known-bad fixture present'

Pass when active Dockerfile / settings.xml have no public FROM, no dest-registry Route, no Central, no curl installers — and Dockerfile.known-bad still exists. Both FROM lines use the internal registry.

Fill the report

The Job also grades ConfigMap report-08-forbid-list key hermetic_starts. Set it to source. Empty or REPLACE_ME fails even if cluster state is correct. Do not copy validate-docs.

oc -n lw-poc-validate edit configmap report-08-forbid-list

The scored Check is Job validate-08-forbid-list in lw-poc-validate. Direct nav URLs still work (honor system). Unlimited retries. There is no Solve.

Run the Validate Job
oc -n lw-poc-validate delete job validate-08-forbid-list --ignore-not-found
TPL='job-08.yaml'
oc -n lw-poc-validate get configmap validate-job-templates \
  -o go-template="{{ index .data \"${TPL}\" }}" | oc create -f -
oc -n lw-poc-validate logs -f job/validate-08-forbid-list

Expect CHECK PASSED: before you continue. CHECK FAILED: names the object to fix. Delete the Job and create it again as often as you need.

Honor system: 4.2 still opens.

Callout: pip forbid-list

On a pip app the same grep is pypi.org / public index-url in requirements.txt and pip.conf, not Maven Central. This Check is Dockerfile + settings.xml.

Official documentation

Key takeaways

  • TSSC hermetic starts in source, before NP and prefetch.

  • Lightwell Network and Clearinghouse Premier GAVs stay on the internal Nexus service. Konflux hermetic source policies map to this Check. Product names are in Konflux mapping.

cd ~/ocp5-rhacs-showroom
bash setup/lab-cleanup.sh --module tssc-08
