4.3 Build NetworkPolicy

Overview

Tighten NetworkPolicy build-egress on lw-poc-build from allow-all to deny-egress plus DNS, registry, Nexus, Gitea, and the Kubernetes API. 4.4 clone and oc start-build need those last two. Do not allow public registry hosts or the worked-example 8.8.8.8.

Do not copy this policy onto lw-poc-staging or lw-poc-prod. app-operate stays operate (Track 6).

Why it matters

Hermetic must be enforced at the network, not only in grep. After you tighten build-egress, Maven Central, public registries, and even the Nexus Route fail from lw-poc-build for real. Lightwell Network GAVs must use the in-cluster Nexus service. Gitea clone must use the in-cluster URL.

Build NP is not app operate. Clearinghouse Premier does not need packages.redhat.com on this allow-list. Member artifacts are already in the proxy you allowed.

What does it solve

  • Build pods that can egress anywhere

  • Reusing build NP on runtime namespaces

  • Allowing public registry CIDRs

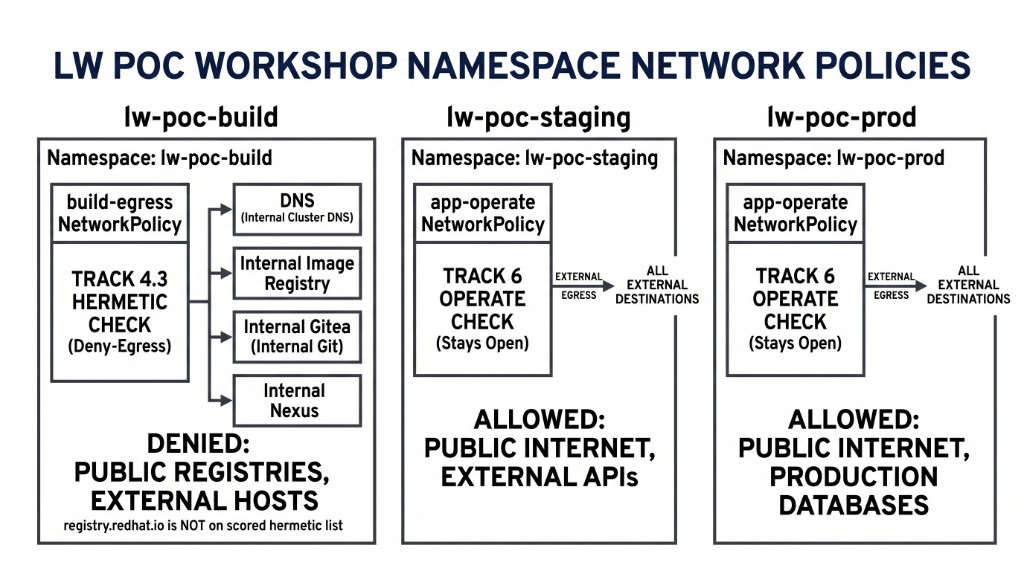

Two policies, two Checks

build-egress hermetic versus app-operate on staging and prod

Discover seed + allow-list hints

oc -n lw-poc-build get networkpolicy build-egress -o yaml
oc -n lw-poc-build get configmap demo-userinfo-networkpolicy -o yaml
oc -n lw-poc-build get configmap networkpolicy-docs \
  -o jsonpath='{.data.example-hermetic-egress\.yaml}'

Worked example (not the Check)

Policy name example-hermetic-egress, namespace example-build-ns, extra CIDR 8.8.8.8/32. Paste-identical copy fails.

# Worked example ONLY — wrong name, wrong namespace, public DNS.
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: example-hermetic-egress
  namespace: example-build-ns
spec:
  podSelector: {}
  policyTypes: [Egress]
  egress:
    - to:
        - ipBlock:
            cidr: 8.8.8.8/32

Allow-list (from userinfo keys — do not invent CIDRs except the kube API ClusterIP you discover below). OVN matches egress ports to the pod port after DNAT, not the Service port.

  • openshift-dns UDP (and TCP) port 5353

  • openshift-image-registry TCP 5000

  • lightwell-repo Nexus HTTP 8081 and Docker dest 5000

  • gitea TCP 3000 (in-cluster clone — not the Gitea Route)

  • Kubernetes API: default/kubernetes ClusterIP TCP 443, plus endpoint IPs TCP 6443 (hostNetwork masters; namespaceSelector: default does not match them)

  • stackrox TCP 8443 (Central Service is 443 → pod 8443 — ports: [{port: 443}] does not allow it)

  • trusted-artifact-signer TCP 8080 (TUF), 5555 (Fulcio HTTP), 5554 (Fulcio gRPC), 3000 (Rekor)

  • trusted-profile-analyzer TCP 8080 (TPA Service is 443 → pod 8080)

Discover the API addresses (they differ per cluster).

oc -n default get svc kubernetes -o jsonpath='clusterIP={.spec.clusterIP} port={.spec.ports[0].port}{"\n"}'
oc -n default get endpoints kubernetes -o jsonpath='{.subsets[*].addresses[*].ip}{" "}{.subsets[*].ports[*].port}{"\n"}'

Your change: tighten build-egress

Replace the seed egress: [ {} ] with deny-by-default plus the destinations above (namespaceSelector on those namespaces, matching pod ports from userinfo, plus ipBlock /32 for the kube API ClusterIP and endpoint IPs). Do not add registry.redhat.io or a public CIDR. Do not rely on namespaceSelector: openshift-ingress for Routes — Route hostnames resolve to the ingress VIP, which that selector does not match. After 4.3, 4.4 must use in-cluster Gitea (student_repo_internal_url) and Nexus (nexus_internal_url), not HTTPS Routes. Pipeline ACS / keyless sign / TPA need the stackrox / RHTAS / TPA pod ports — Service port 80 or 443 is not enough.

oc -n lw-poc-build get networkpolicy build-egress -o yaml
# edit in place or oc apply a file you authored — not example-hermetic-egress.yaml
oc -n lw-poc-staging get networkpolicy app-operate

Check: NP spec

Pass when:

  • build-egress exists in lw-poc-build, is not allow-all egress, includes DNS + registry + Nexus

  • Extra allows for Gitea, kube API, stackrox 8443, and RHTAS pod ports are expected so 4.4 / 5.1 can run

  • You did not copy it to lw-poc-staging

  • app-operate on staging/prod is still the operate seed

After this tighten, a PipelineRun that still clones the Gitea HTTPS Route or resolves Maven from Central will hang or fail. That is the lesson, not a reason to reopen egress.

build-egress applies to pods in lw-poc-build. Node/kubelet image pulls (Task step images, some BuildConfig strategy pulls) are not that NetworkPolicy. The prefetch Task image (registry.access.redhat.com/ubi9/openjdk-21) can still land after 4.3; 4.1's ImageStream import is what keeps the Dockerfile FROM internal. Do not add registry.redhat.io to the allow-list because a Task step pulled.

Fill the report

The Job also grades ConfigMap report-10-build-networkpolicy key np_scope. Set it to build-ns. Empty or REPLACE_ME fails even if cluster state is correct. Do not copy validate-docs.

oc -n lw-poc-validate edit configmap report-10-build-networkpolicy

The scored Check is Job validate-10-build-networkpolicy in lw-poc-validate. Direct nav URLs still work (honor system). Unlimited retries. There is no Solve.

Run the Validate Job
oc -n lw-poc-validate delete job validate-10-build-networkpolicy --ignore-not-found
TPL='job-10.yaml'
oc -n lw-poc-validate get configmap validate-job-templates \
  -o go-template="{{ index .data \"${TPL}\" }}" | oc create -f -
oc -n lw-poc-validate logs -f job/validate-10-build-networkpolicy

Expect CHECK PASSED: before you continue. CHECK FAILED: names the object to fix. Delete the Job and create it again as often as you need.

Honor system: 4.4 still opens. The Check grades the live NetworkPolicy, not a YAML screenshot.

Official documentation

Key takeaways

  • TSSC build hermetic ≠ app operate.

  • After this tighten, clone and Maven (Lightwell Network / Premier GAVs) must use in-cluster service URLs, not Routes.

  • Pipeline Fulcio / Rekor / TUF must use *_internal_url from demo-userinfo-rhtas. Runtime FROM must already be the internal dest ImageStream from 4.1.

  • build-egress is pod egress. Kubelet Task-image pulls can still reach registry.access.redhat.com; do not reopen the policy for that.

cd ~/ocp5-rhacs-showroom
bash setup/lab-cleanup.sh --module tssc-10
